We have made it our mission to improve the Portable Kiln charcoal-producing-kiln and investigate ways to turn it into a biochar producing kiln. This system uses a ‘direct combustion’ method, whereby the heat for carbonisation comes from burning a portion of the biomass feedstock in a limited air environment. Vuthisa however decided to promote the plans for this basic drum system of producing charcoal and biochar so that others can build it and improve upon it. How often does it happen that somebody has a novel design idea, but often fails to effectively relay the concept to others for review? By constructing a standard kiln everybody is immediately on the same page. Join our exclusive community of Portable Kiln owners, known as the Portable Kiln Google Group for sharing ideas, innovations and improvements. Support this initiative by downloading the plans under Option A1 or Option A2 below, after making a small monetary payment to ensure exclusivity of its members in the Google Group and to cover the administrative costs associated with maintaining this website and this group.
“The 3-drum Biochar Retort is more clean burning (with the added conical lid and chimney) and the burn is more controlled which gives the user the option to create either Biochar or conventional charcoal.”

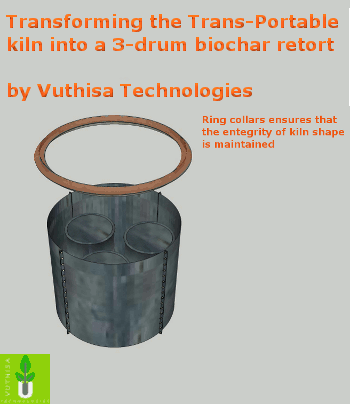

**Update** We have undergone trials with 2 x 55 g0al oil drums enclosed within the Trans-Portable Kiln and have shared our findings on the Portable Kiln Google Group. We have had very constructive input from Dr Hugh McLaughlin and other biochar experts (special thanks goes out to John Hofmeyr) and as a result have come up with the 3-drum Biochar Retort. The extra open spaces (4 in total) created between the 3 drums will ensure sufficient fuel to evolve the heat inside the retorts, create multiple heating fronts and create more biochar in one burn. The feedback we received was incorporated into the ‘3-drum Biochar Retort Construction and User Manual’.
Vuthisa will also endeavor to build new prototype kilns and carry out performance testing at its own cost. See our trials done in Franklin, 30 km North of Kokstad, KwaZulu-Natal here. Here’s our latest version:
The current charcoal production process

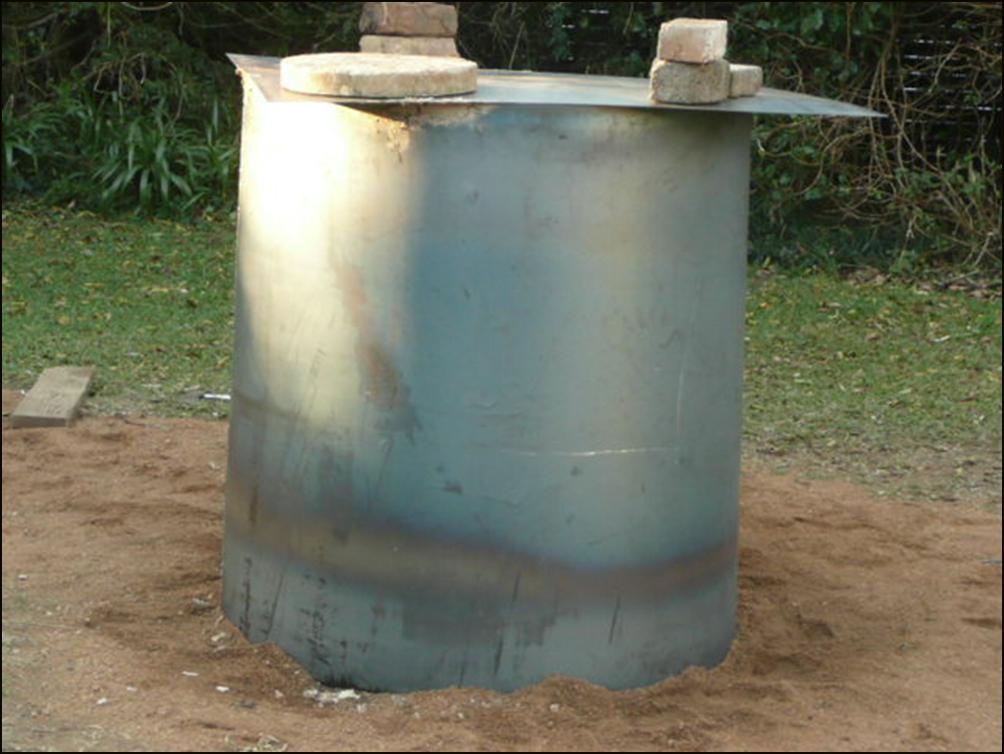

The Portable Kiln method described in the opening paragraph (not the 3-drum Biochar Retort) is a simple, heavy gauge, mild steel drum with a square lid. The drum is packed with feedstock with varying thicknesses and bottom lit. Once the charge has burned for some time, white ash will start spilling out the primary air inlet holes. This is the cue that a fair proportion of the smaller pieces of feedstock have been totally consumed and that air now needs to be limited to prevent the rest of the charge to also turn to ash. Air is only allowed in from the open top of the drum and mixes with the volatile gases now coming off as part of the exothermic reaction. As soon as yellow smoke start appearing it means tars and hydrocarbons are now being given off. The lid is placed on top of the drum and the hydrocarbons are absorbed by the charcoal. The tars then also seal the lid flush with the top of the drum. Sand and stones are packed on to the lid to prevent the ‘soup mix’ spilling out. The heavy gauge steel retains heat for quite some time, allowing the contents to ‘cook’.

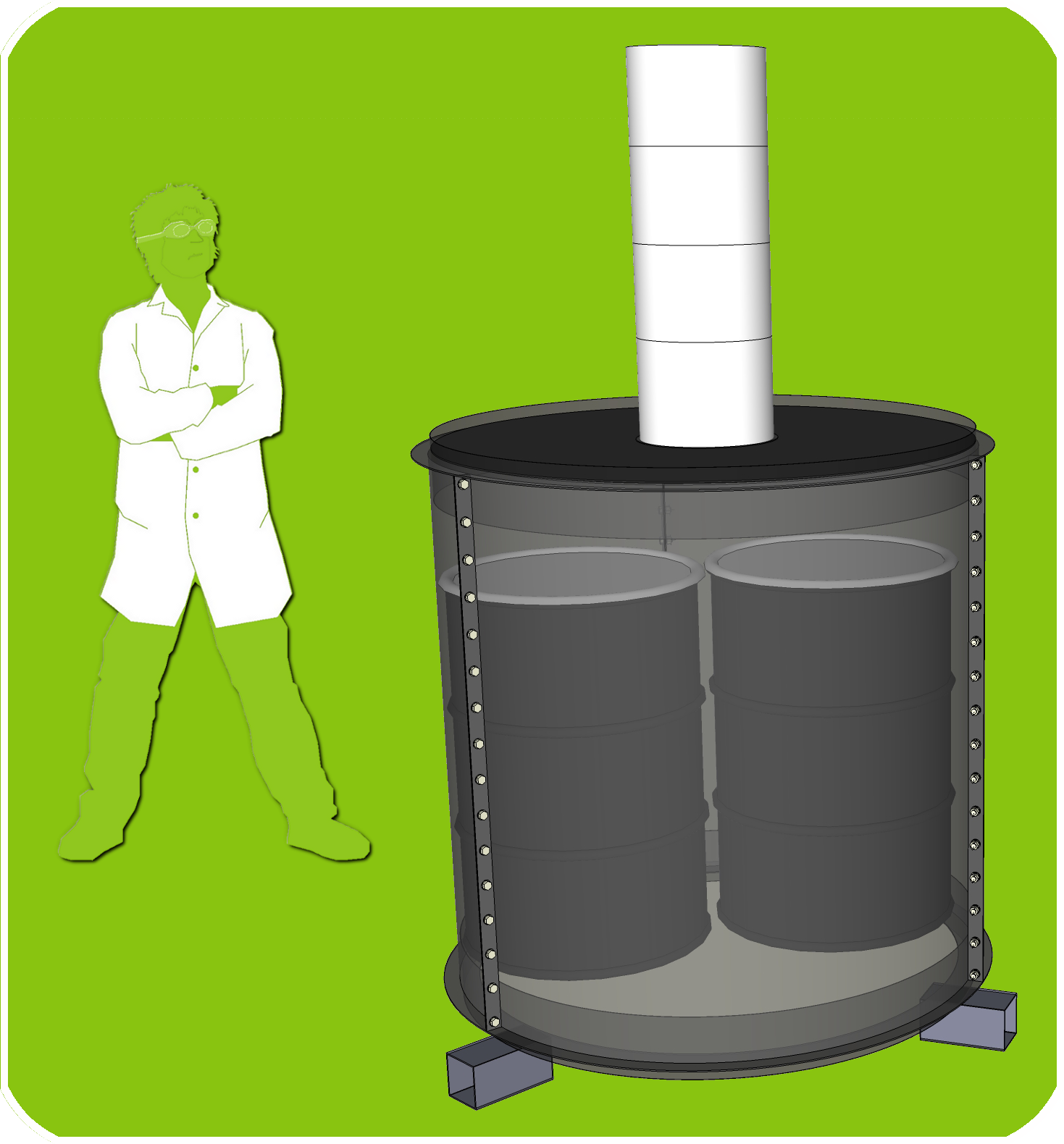

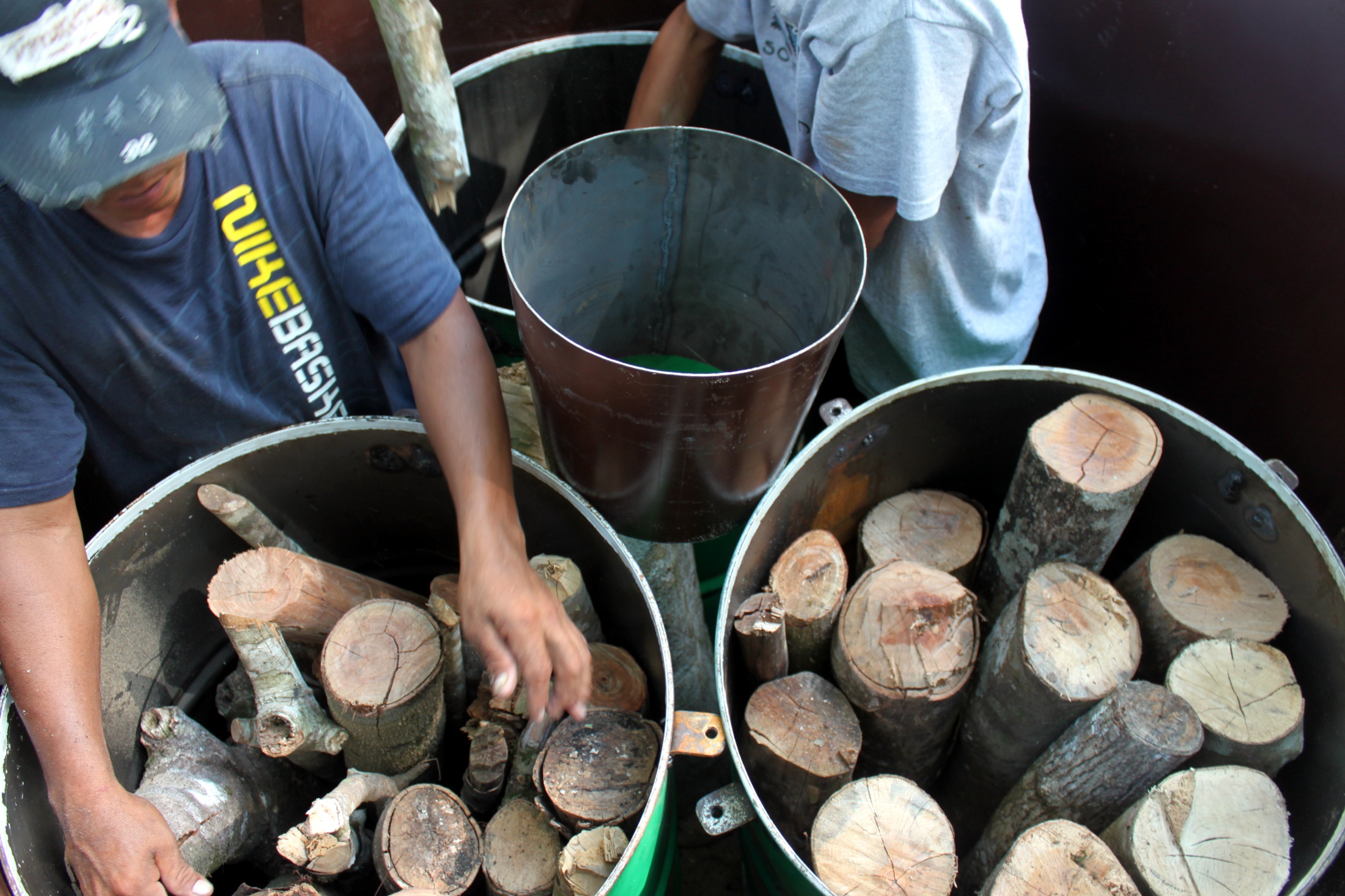

To produce biochar many enthusiasts opt for the 55/30 system, which consists of a 55-gallon outer drum containing the fire around a 30-gallon inner drum acting as the enclosed retort. For examples of such systems visit: http://www.carbon-negative.us/Burners.htm and http://youtu.be/COPqvVH7jiw. We did some trials to produce biochar with the Trans-Portable Kiln which just so happen to be the perfect size to accommodate 2 x 55 gallon drums for making biochar with indirect heating, turning it into a retort type system. The drums were wedged in side by side and rolled along with the rest of the kiln. When not using the 55-gallon drums the system is not a true retort and produces more smokey burns. Hence the development of the 3-drum Biochar Retort. The 3-drum Biochar Retort is more clean burning (with the added conical lid and chimney) and the burn is more controlled, and the user has an option to create either Biochar or conventional charcoal. If the purpose of the operation is to clear invasive aliens then the open burn (without 3 drum retorts) will be able to process more feedstock at a time. Compared to the 55/30 system the Biochar yield is substantially more. The Trans-Portable Kiln and 3-drum Biochar Retort are easy to transport to the work site for assembly, and being circular in shape, can be rolled over fairly long distances with minimal effort and labor. It is a fairly low cost system and initial capital outlay is minimal compared to other commercial type kilns. We have been able to increase the longevity of the kilns, by increasing the gauge thickness, reinforcing the top and bottom of the kilns to make them more structurally secure when re-positioning the kiln. We also have strict guidelines for setting-up procedures, feedstock re-fueling, and general handling of the kilns.
Other portable kiln types

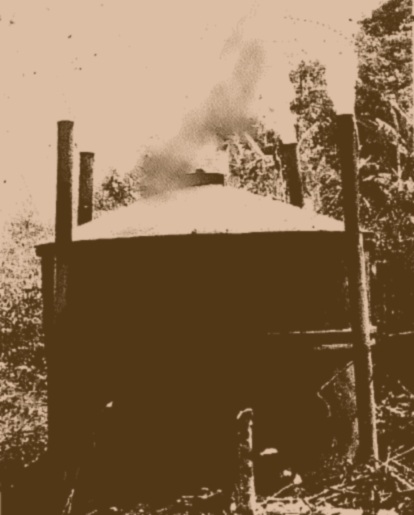

There is another type of steel kiln in widespread use (especially in Africa) that uses a simple air supply system, operating on a reverse draught principle with the aid of chimneys situated around the base of the kiln. It consists of 2 cylinders, a cover and cap, 8 smoke boxes with close-able caps and collars and 4 chimneys. The bottom cylinder rests on top of the smoke boxes and some are left open, have caps on them or chimneys inserted into them. This is a typical down draught (reverse draught) configuration, whereby the kiln is lit at the bottom, air is simultaneously introduced at the bottom as well, for feedstock combustion, with smoke drawn upwards from the bottom with the use of the four chimneys. The process yields approximately 50 to 60 kilograms charcoal per m3 of timber and requires 6 m3 of wood. This method will take 24 to 36 hours to produce the charcoal and to cool off. It requires a larger capital outlay, feedstock and labor requirement. The kiln needs to be made to exacting specifications for cylinders to fit into each other and flanges have to be attached to the lower cylinder to accept the top cylinder. Clearly this is an archaic and smokey way of producing charcoal and yields are often under the 20% efficiency mark. This information was obtained from a user-manual written in 1975 and many advances has since been made in reducing the smoke emitted from the stacks. The full PDF explaining correct use of this system, including construction plans, can be accessed via the Portable Kiln Group’s Google Docs site via links included in Google Group discussions.
Not much can be done to clean up the initial white smoke whilst the water vapor is driven from the wood, but when the chemical bonds within the constituents of the biomass begin to break, continued heat is required to increase temperature of the now dry biomass and break the molecular bonds. This phase is known as torrefaction and precedes the next phase which is exothermic in nature, i.e. a process that releases energy. Combustible volatiles and hydrocarbons along with tar start to form with the volatiles igniting and supplying heat to the reaction, and when depleted, only charcoal remains. One sees this with uncontrolled open burns, where not much smoke is observed shortly after water vapors are driven out, especially if the fuel is supplied with excess air, but then not much charcoal remains following that burn.
When doing experiments take cognizance of the size and shape of the feedstock being used. For instance if the dimensions of the individual pieces are too small, the material will pack so tightly that no gas can circulate and heat will not penetrate the center of the charge. If the individual pieces are too large there will be plenty circulation, but heat will not penetrate the center of each piece.

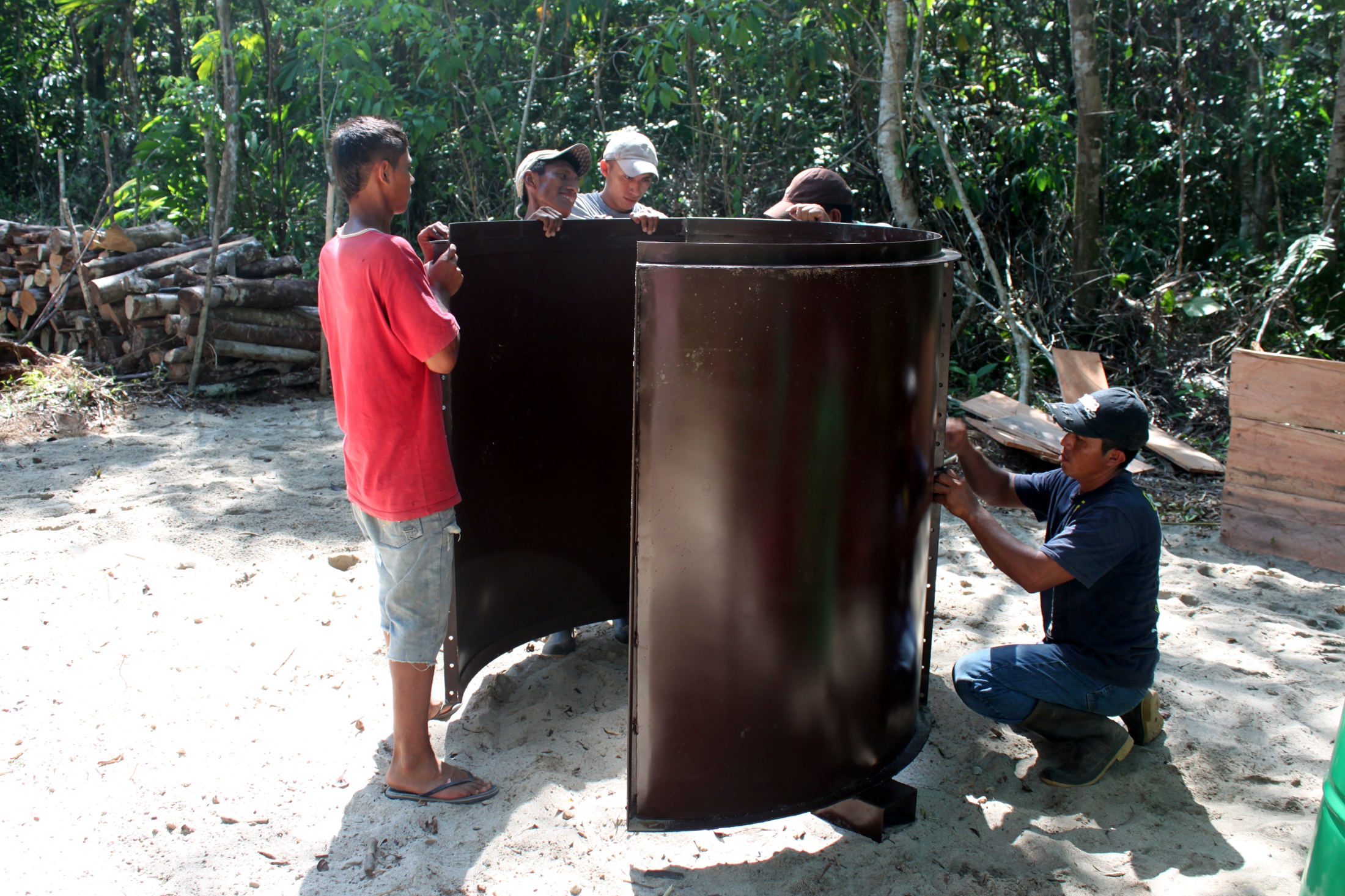

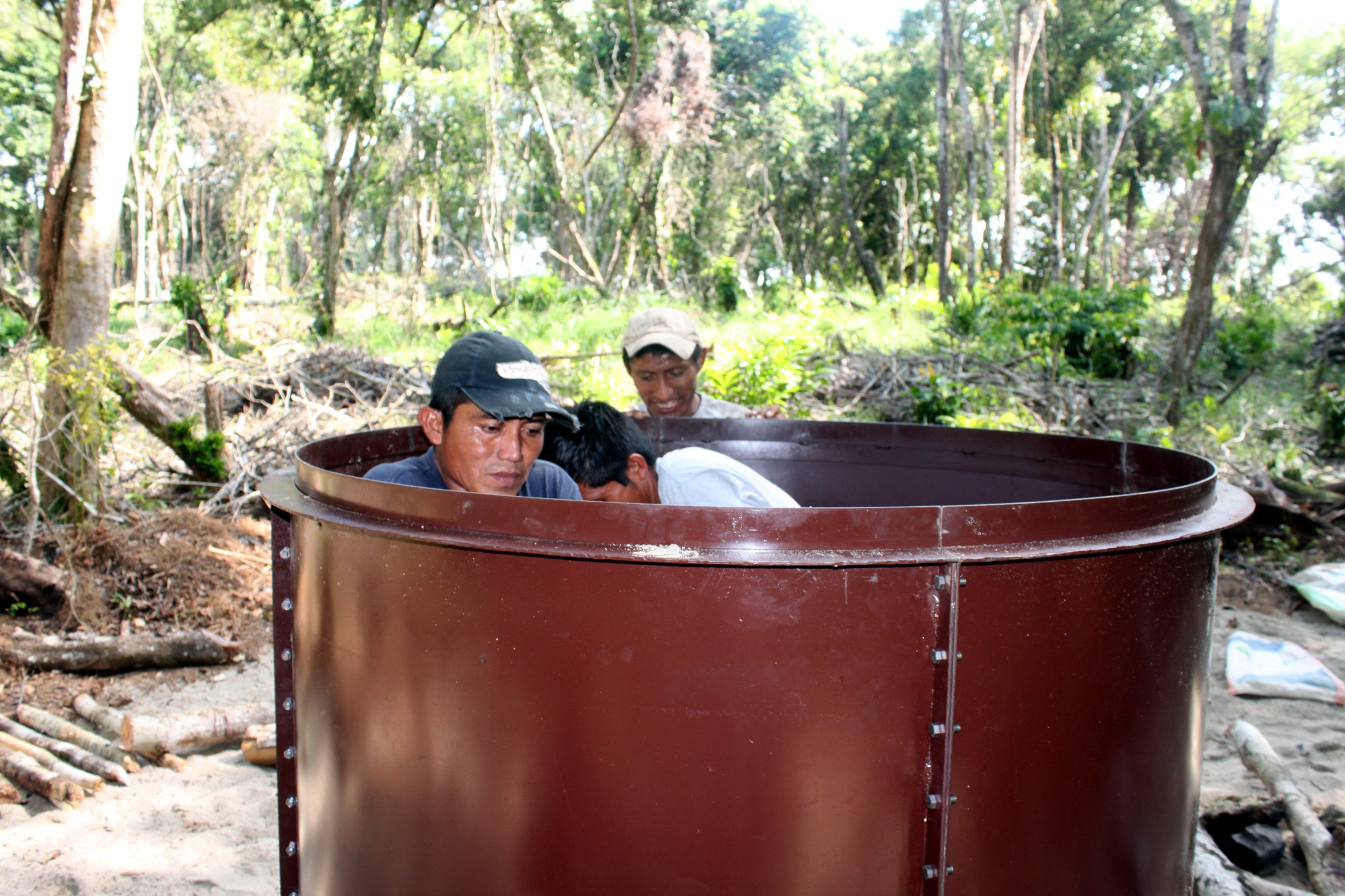

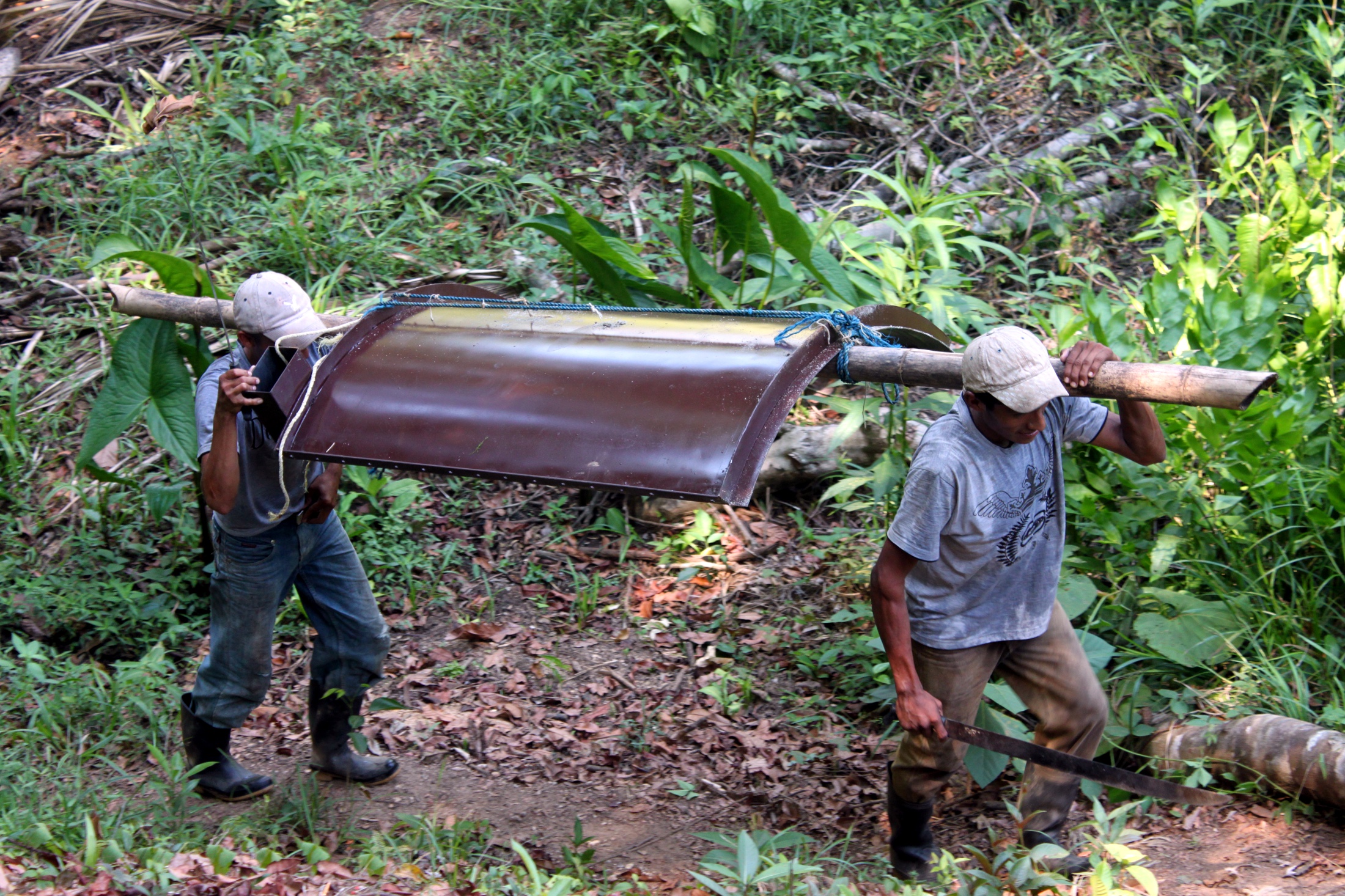

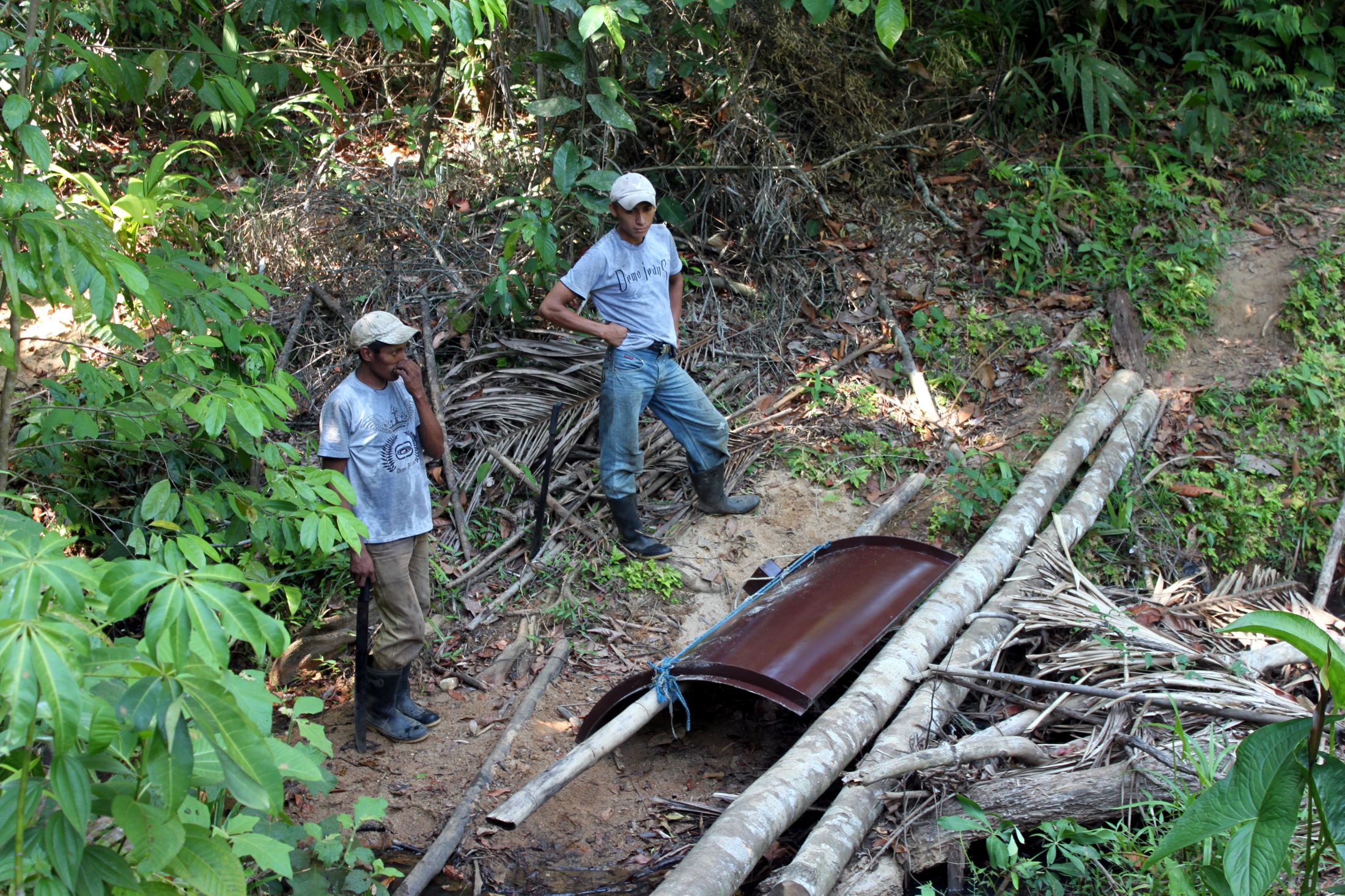

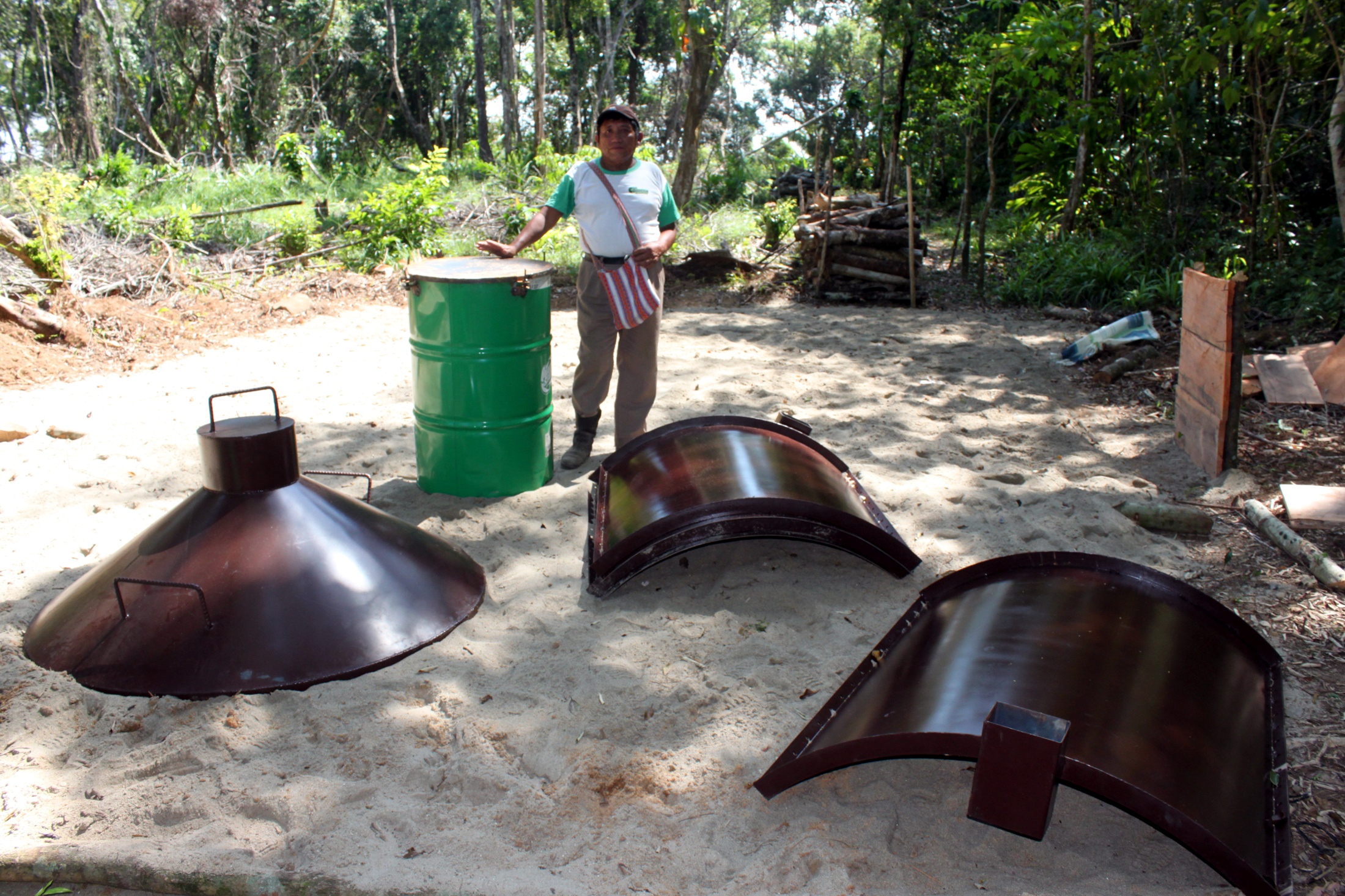

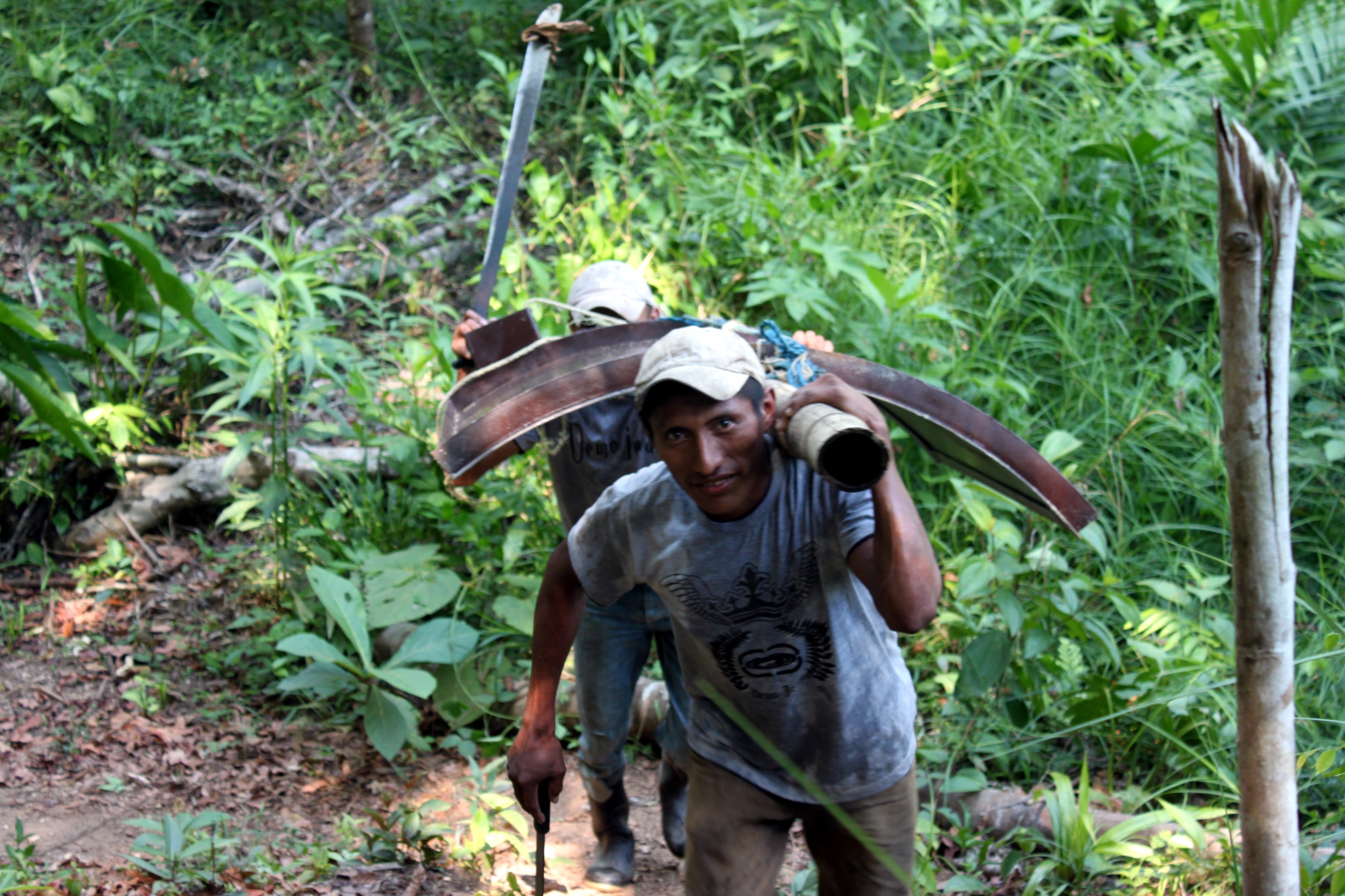

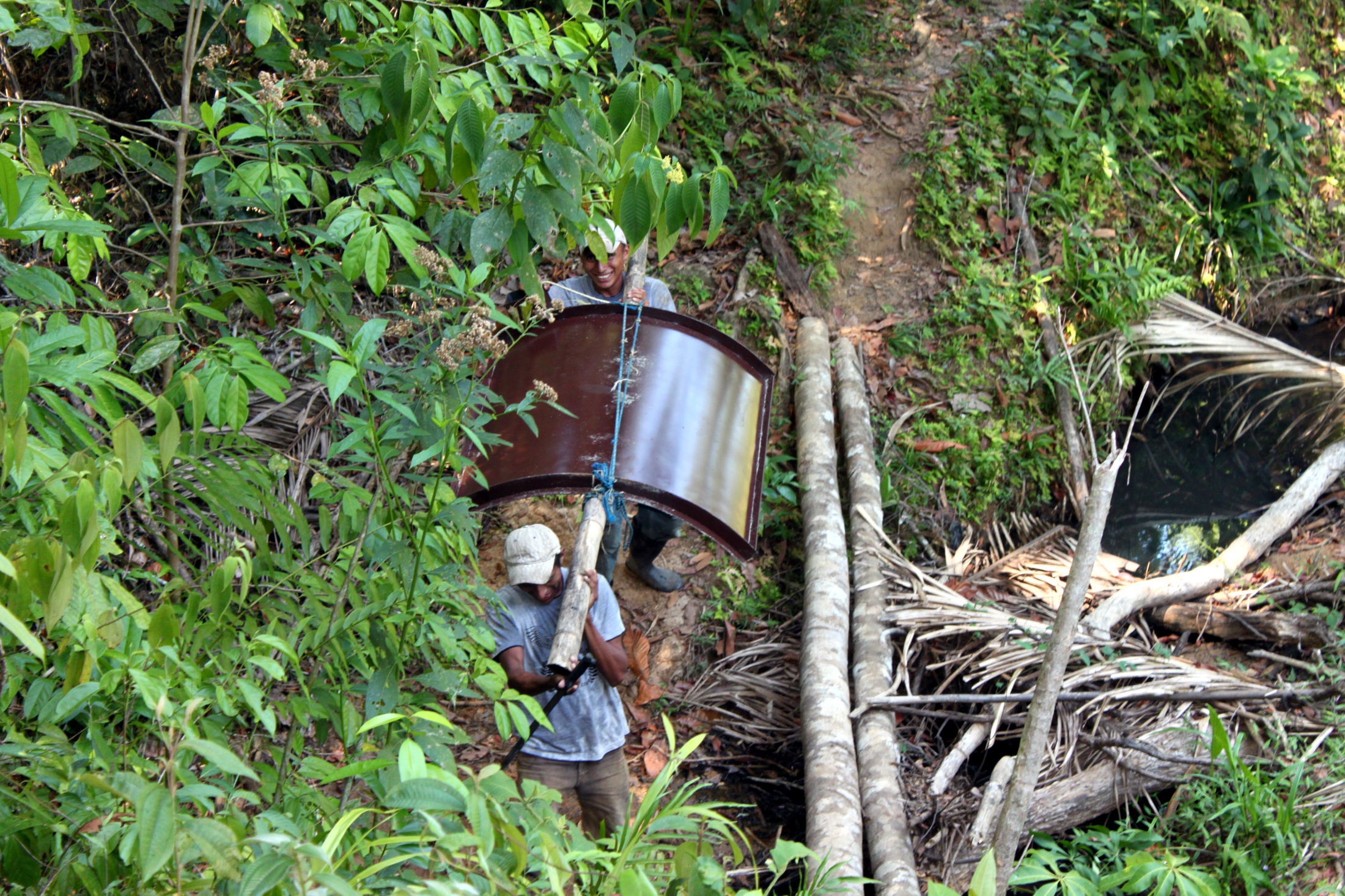

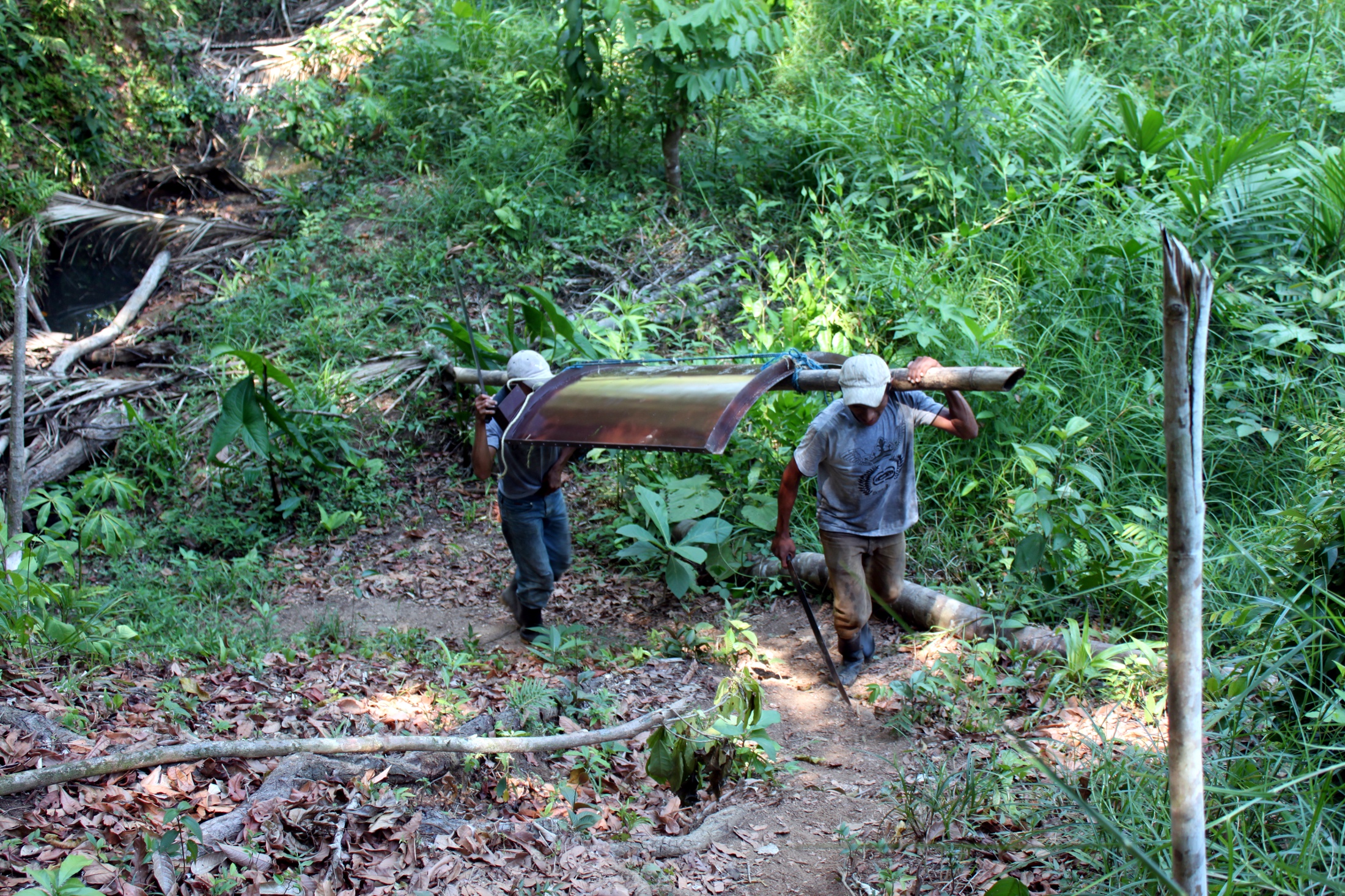

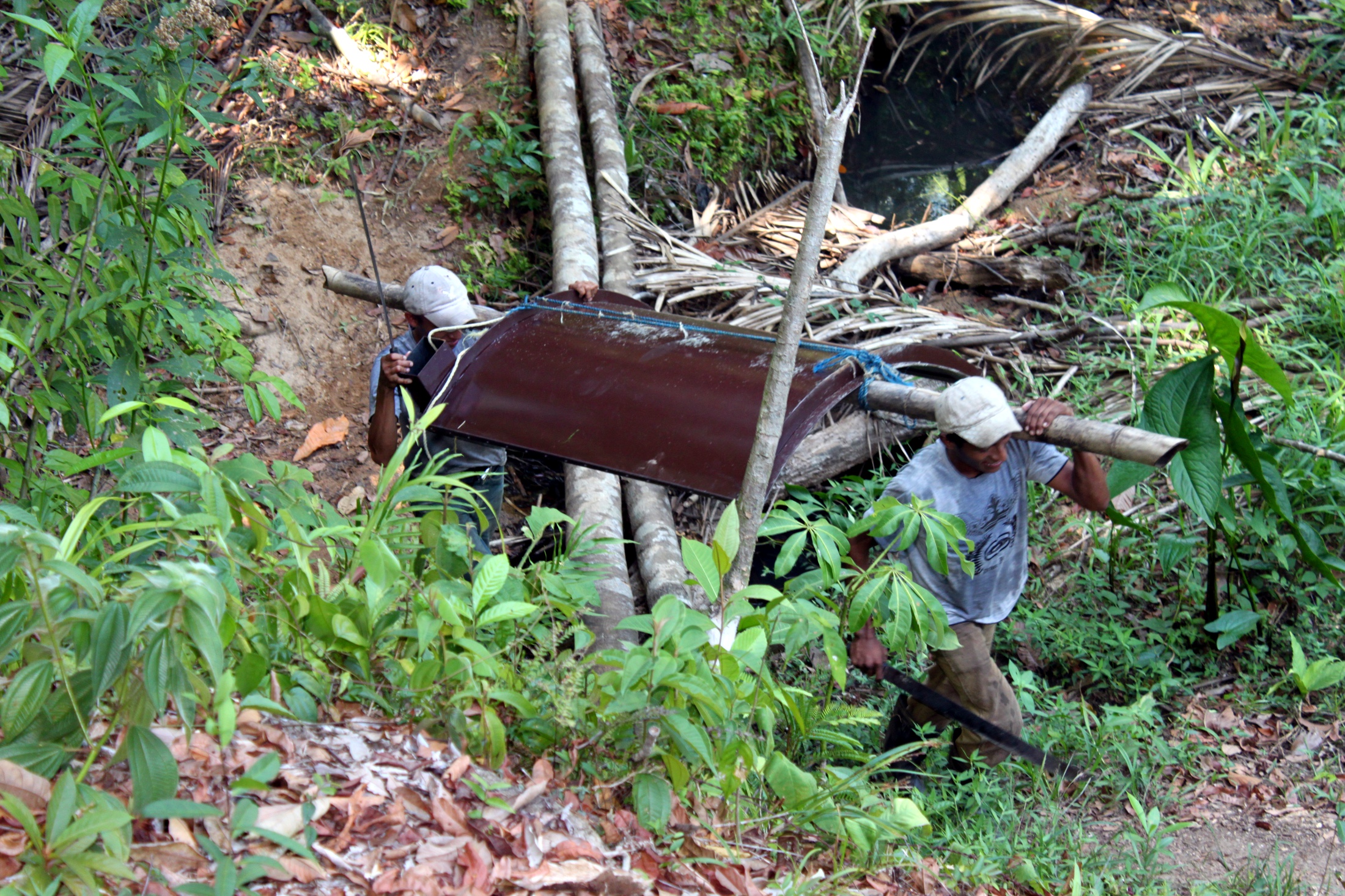

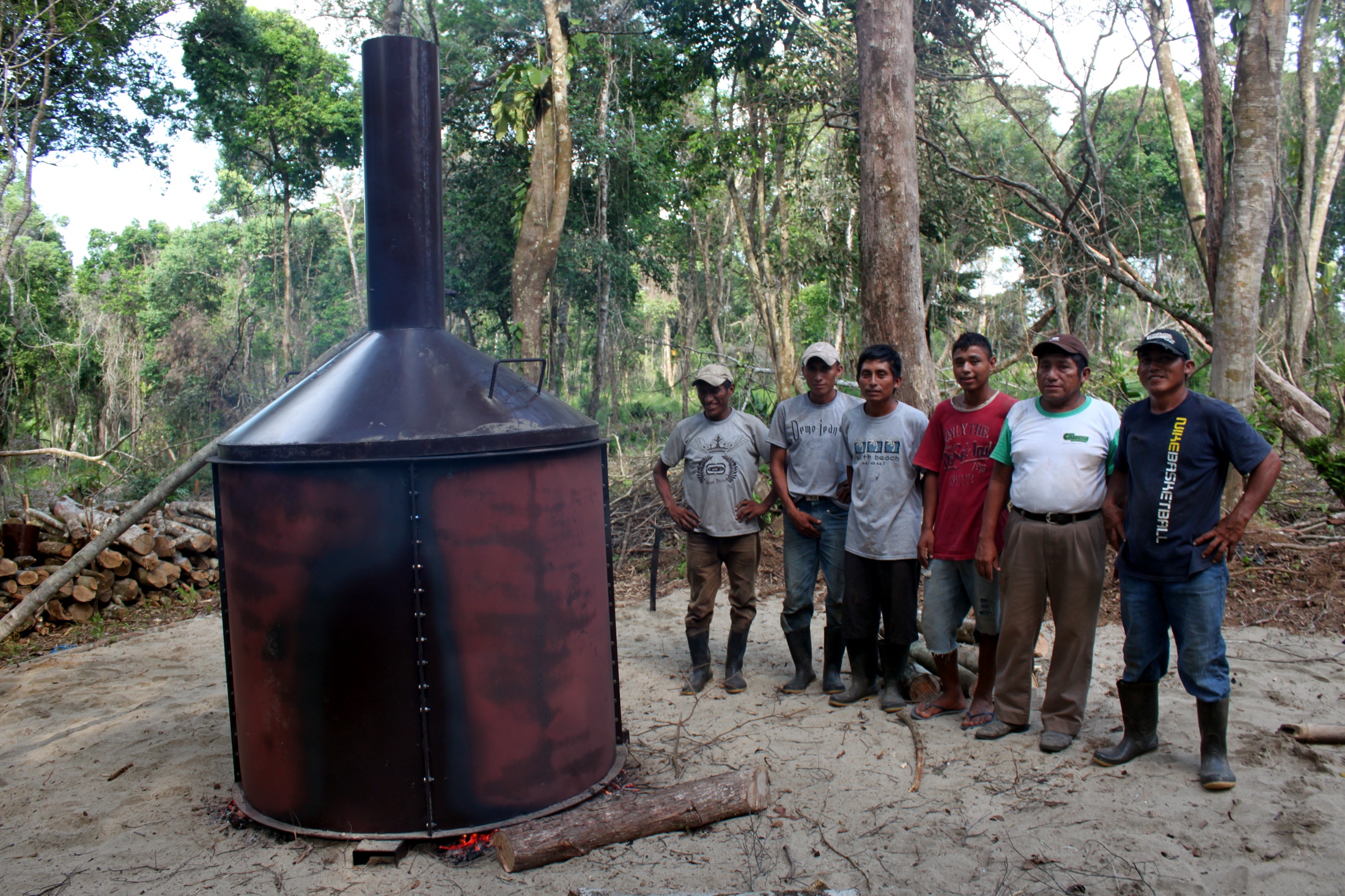

So in a nutshell our challenge is to re-circulate the volatiles during the exothermic phase back into the reaction and vent less greenhouse gases and ultimately achieve higher charcoal yields and create bona fide biochar. Are you up for the challenge? We have already found that constructing the kiln in 3 equal sections makes it easier to transport from the light engineering works to the feedstock site, where it can be assembled. No leakage was observed at the adjoining flanges and it is now easier to incorporate add-on features such as pre-heated secondary air ducting, blowers and chimneys without having to cut extra holes in the drum itself. We are continuing to make improvements and we are currently testing a conical lid and chimney via the ‘3-drum Biochar Retort’. For some history on the Trans-Portable Kiln, click here. For any queries contact us here. Join this cause and make a difference! Click on the GIF image below to view an animation showing the steps for making Biochar in the 3-drum Biochar Retort:
We have ceded Intellectual Property to an international investment company concerning some of our latest designs. More information will be forthcoming mid 2021. Please visit our NEWS page for updates: https://vuthisa.com/news/
VUTHISA was involved in product development for Amanz’Abantu with funding from The Bill and Melinda Gates Foundation and the Water Research Council.
Rocket stoves now provide endothermic heat into drum retorts. We have the RING17 and RING20 models still for sale.

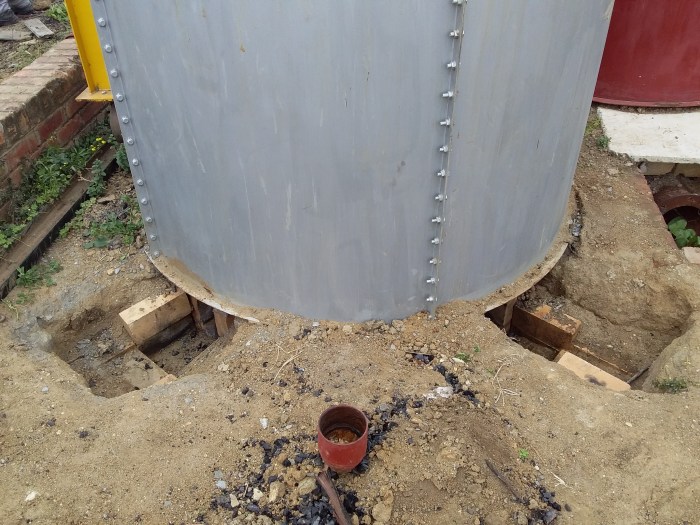

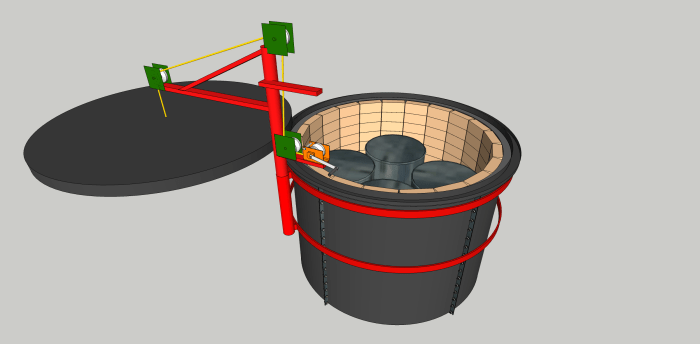

VUTHISA kilns are now lined with refractory ceramics and comes equipped with a JIB CRANE to load and unload retort drums and lift off the insulated lid.
CLICK on the image below to download our CALC SHEET (Excel spreadsheet) to see our latest models. It is designed to be an interactive experience and affords our customers an opportunity to customize their options. Prices are quoted in Rands (ZAR) and US$.
Other new designs are also in the pipeline.

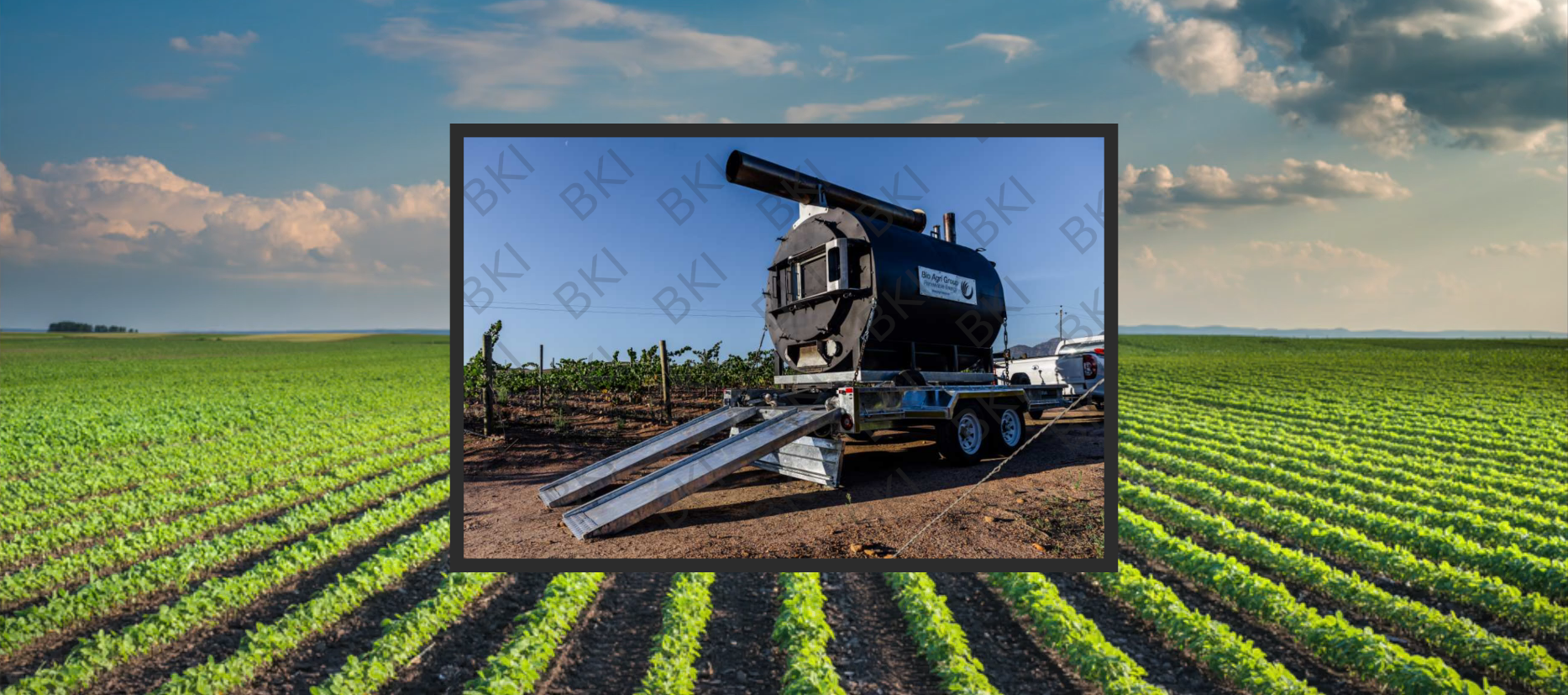

VUTHISA acquired the manufacturing rights to the “Series 2 Mobile Pyrolysis Unit” in South Africa, originally developed by Pyrolitech Carbon Offsetzone, Queensland, Australia.
This unit is completely mobile – in contrast with our low-tech RING17, RING20 and BKI MINI MASON models. Many clients have asked for a more high-tech option/solution that can produce wood vinegar and this model checked all the boxes.
Capacity/Yield: The unit holds more than 1.3M3 of biomass and converts it into valuable products such as biochar, bio-oil and wood vinegar. The 1300+ litres retort volume translates to around 600 litres of lump biochar out. Then when crushed, produces approximately 250 to 300 litres of biochar. No need for quenching, so it’s very light and easy to work with.
Note: The weight of biomass can vary from softwood, hardwood logs to bamboo, and moisture content also varies. Depending on size of limbs and air gaps between branches it is better to talk in terms of volume only, and biochar can weigh more on a humid day. Often times clients prefer biochar to be mixed with water in order to inoculate it and protect the microorganisms so weight will vary. Due to the presence of water, and evaporation that occurs naturally and for the sake of consistency, biochar should never be sold on a weight basis.
Co-firing: It comes equipped with an LPG connection to start the fire in the firebox but LPG is just an optional extra ‘nice to have’.
Mobility: The unit comes on skids and castors can also be fitted. Trailer not supplied, but it fits on any 7 x 5 ft (2.1 x 1.5m) trailer.
License: The design is under international copyright, which is documented in the drawings and the license unlocks full CAD drawings in a format to suit the CNC plasma/oxy cutting equipment at our local manufacturer in Pietermaritzburg.
Support: The unit comes with an Operating Manual, Assembly instructions, Maintenance tips and a Run procedure.
Delivery time: 6 weeks
Cost: If anyone would like a quotation in the new year please get in touch. Not until our manufacturer takes delivery of the plans will we have an idea of cost, but VUTHISA believes it will be priced competitively.
If anyone is interested in operating this technology outside of South Africa we are quite happy to provide their contact details. VUTHISA will however be manufacturing this kiln soon and will be able to ship /air freight it to almost any country outside of South Africa.
